Base class of all command types. More...

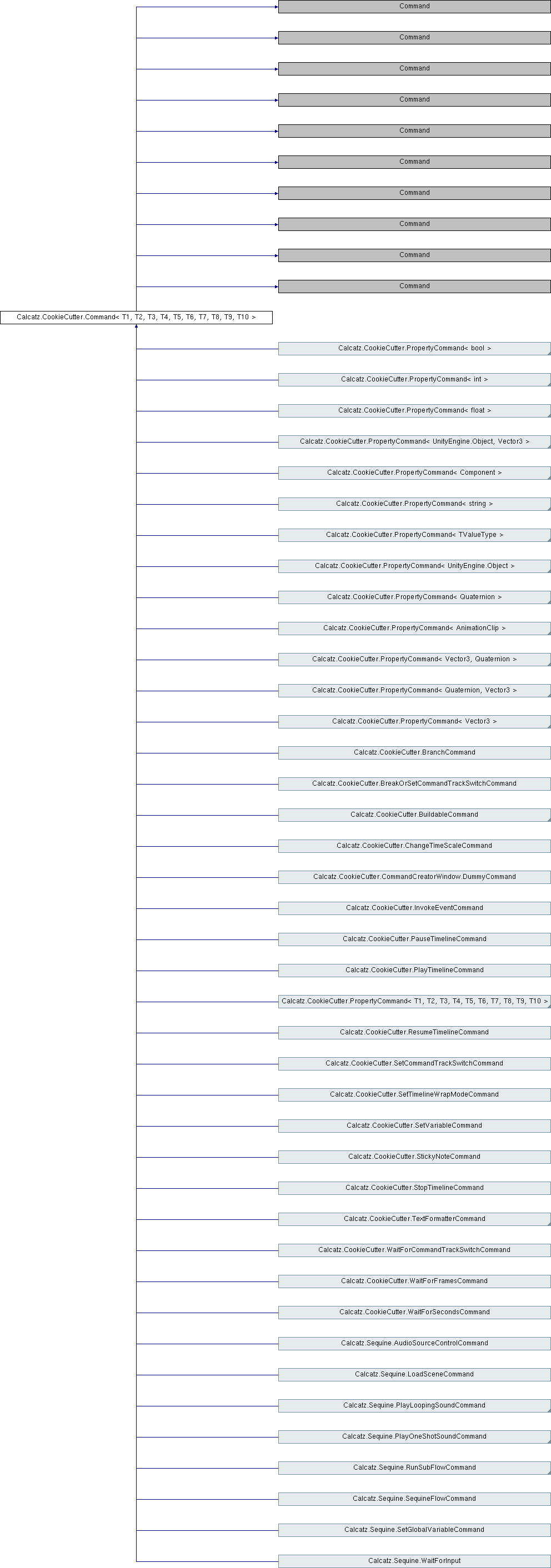

Inheritance diagram for Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >:

Classes
class	ConnectionTarget

struct	SubFlowInfo

Public Member Functions
virtual int	GetNextOutputIndex ()
	Get the output index to get the next command ID upon exiting this command. More...

virtual object	GetOutputBoxed (CommandExecutionFlow _flow, int _pointIndex)
	Get output value at out-point index. More...

virtual void	Execute (CommandExecutionFlow _flow)
	The process to execute upon visiting the main in-point (white in-point). More...

virtual bool	Validate (CommandData _commandData)
	Validate() is called when opening the nodes editor (if in Edit Mode), or right before the command execution (if in Play Mode). The main purpose is to adapt or validate any data inside the Command, if its structure had been changed. More...

virtual void	Editor_InitInPoints ()
	Called when a Command Node is initialized, specifically the in-points. Use this method to ensure inputIds as well. More...

virtual void	Editor_InitOutPoints ()
	Called when a Command Node is initialized, specifically the out-points. Use this method to ensure nextIds as well. More...

virtual void	Editor_OnDrawTitle (out string _tooltip)
	Called when a Command Node's title is drawn. Use this to change the tooltip of the command. Also use this to decide whether the Title should draw in-point and/or out-point. More...

virtual void	Editor_OnDrawContents (Vector2 _absPosition)
	Called when a Command Node is drawn. More...

bool	TryGetCommandAtOutputIndex (CommandData _commandData, int _outputIndex, out Command _nextCommand)
	Try get the next command at the specified main output index. The current command data of a flow may be dynamically changing, so this is the approach to specify a commmand data directly. More...

bool	TryGetCommandAtOutputIndex< TCommand > (CommandData _commandData, int _outputIndex, out TCommand _nextCommand)
	Try get the next command at the specified main output index. The current command data of a flow may be dynamically changing, so this is the approach to specify a commmand data directly. More...

override sealed object	GetOutputBoxed (CommandExecutionFlow _flow, int _pointIndex)

virtual T1	GetOutput (CommandExecutionFlow _flow, int _pointIndex)

override sealed object	GetOutputBoxed (CommandExecutionFlow _flow, int _pointIndex)

virtual OneOf< T1, T2 >	GetOutput (CommandExecutionFlow _flow, int _pointIndex)

override sealed object	GetOutputBoxed (CommandExecutionFlow _flow, int _pointIndex)

virtual OneOf< T1, T2, T3 >	GetOutput (CommandExecutionFlow _flow, int _pointIndex)

override sealed object	GetOutputBoxed (CommandExecutionFlow _flow, int _pointIndex)

virtual OneOf< T1, T2, T3, T4 >	GetOutput (CommandExecutionFlow _flow, int _pointIndex)

override sealed object	GetOutputBoxed (CommandExecutionFlow _flow, int _pointIndex)

virtual OneOf< T1, T2, T3, T4, T5 >	GetOutput (CommandExecutionFlow _flow, int _pointIndex)

override sealed object	GetOutputBoxed (CommandExecutionFlow _flow, int _pointIndex)

virtual OneOf< T1, T2, T3, T4, T5, T6 >	GetOutput (CommandExecutionFlow _flow, int _pointIndex)

override sealed object	GetOutputBoxed (CommandExecutionFlow _flow, int _pointIndex)

virtual OneOf< T1, T2, T3, T4, T5, T6, T7 >	GetOutput (CommandExecutionFlow _flow, int _pointIndex)

override sealed object	GetOutputBoxed (CommandExecutionFlow _flow, int _pointIndex)

virtual OneOf< T1, T2, T3, T4, T5, T6, T7, T8 >	GetOutput (CommandExecutionFlow _flow, int _pointIndex)

override sealed object	GetOutputBoxed (CommandExecutionFlow _flow, int _pointIndex)

virtual OneOf< T1, T2, T3, T4, T5, T6, T7, T8, T9 >	GetOutput (CommandExecutionFlow _flow, int _pointIndex)

override sealed object	GetOutputBoxed (CommandExecutionFlow _flow, int _pointIndex)

virtual OneOf< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >	GetOutput (CommandExecutionFlow _flow, int _pointIndex)

Public Attributes
Vector2	nodePosition
	Don't use this in non-editor code More...

int	id

List< List< ConnectionTarget > >	nextIds = new List<List<ConnectionTarget>>() { new List<ConnectionTarget>() { new ConnectionTarget() } }
	First: Output point index. Second: Connection line index. More...

List< ConnectionTarget >	inputIds = new List<ConnectionTarget>()

Protected Member Functions
T	GetInput< T > (CommandExecutionFlow _flow, int _index, T _defaultValue)
	Get input value at in-point index. If the in-point is not connected, the the value from the _defaultValue is retrieved. This should be called during the same frame when the Execute method is called (not asynchronously). More...

T	GetInput< T > (CommandExecutionFlow _flow, int _index)
	Get input value at in-point index. If the in-point is not connected, the the value from GetDefaultInput is retrieved. This should be called during the same frame when the Execute method is called (not asynchronously). More...

bool	IsInputConnected (int _index)

T	GetConnectedInputValue< T > (CommandExecutionFlow _flow, int _index)

void	Exit ()
	Exit this command, and continue to next command if available. More...

virtual void	OnExit ()
	Can be optionally overriden to do something before actually exiting the command. More...

virtual void	HandleInterruption ()
	Called when the current flow is force killed, while the currently executed command is exactly this command, and has not exited. Note that "exited" here means that Exit() method has been called. More...

void	RunSubFlow (SubFlowInfo _subFlowInfo)
	Run a flow, starting from the command at output index. More...

void	RunSubFlow (ref SubFlowInfo _subFlowInfo, bool _invalidateImmediately=false)
	Run a flow, starting from the command at output index. More...

void	RunSubFlow (int _outputIndex, bool _invalidateImmediately=false)
	Run a flow, starting from the command at output index. This can only be used in a command with ICommandAutoDraw interface. More...

void	RunSubFlow (string _outputLabel, bool _invalidateImmediately=false)
	Run a flow, starting from the command at output index. This can only be used in a command with ICommandAutoDraw interface. More...

bool	TryGetCommandAtOutputIndex (SubFlowInfo _subFlowInfo, out Command _nextCommand)
	Try get the next command at the specified main output index (the command target of a sub-flow). More...

bool	TryGetCommandAtOutputIndex (int _outputIndex, out Command _nextCommand)
	Try get the next command at the specified main output index. This can only be used in a command with ICommandAutoDraw interface. More...

bool	TryGetCommandAtOutputIndex (string _outputLabel, out Command _nextCommand)
	Try get the next command at the specified output label. This can only be used in a command with ICommandAutoDraw interface. More...

bool	CheckTargetComponentInput< T > (CommandExecutionFlow _flow, int _inPortTarget, out T _targetObject)
	Helper for targetting object, which also considers fallback to sibling components and legacy cross-scene binding. More...

Properties
virtual float	nodeWidth `[get]`
	The node width used for the command node. More...

Detailed Description

Base class of all command types.

A command with strongly typed output.

Member Function Documentation

◆ CheckTargetComponentInput< T >()

bool Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.CheckTargetComponentInput< T >	(	CommandExecutionFlow	_flow,
		int	_inPortTarget,
		out T	_targetObject
	)

protected

Helper for targetting object, which also considers fallback to sibling components and legacy cross-scene binding.

Template Parameters

T

Parameters

_flow
_inPortTarget
_targetObject

Returns: Returns true if inPoint is connected, even if the out _targetObject is null.

Type Constraints

T

:

UnityEngine.Object

◆ Editor_InitInPoints()

virtual void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.Editor_InitInPoints ( )

virtual

Called when a Command Node is initialized, specifically the in-points. Use this method to ensure inputIds as well.

◆ Editor_InitOutPoints()

virtual void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.Editor_InitOutPoints ( )

virtual

Called when a Command Node is initialized, specifically the out-points. Use this method to ensure nextIds as well.

◆ Editor_OnDrawContents()

virtual void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.Editor_OnDrawContents ( Vector2 _absPosition )

virtual

Called when a Command Node is drawn.

Parameters

_absPosition

◆ Editor_OnDrawTitle()

virtual void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.Editor_OnDrawTitle ( out string _tooltip )

virtual

Called when a Command Node's title is drawn. Use this to change the tooltip of the command. Also use this to decide whether the Title should draw in-point and/or out-point.

Parameters

_tooltip

◆ Execute()

virtual void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.Execute ( CommandExecutionFlow _flow )

virtual

The process to execute upon visiting the main in-point (white in-point).

Parameters

_flow

◆ Exit()

void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.Exit ( )

protected

Exit this command, and continue to next command if available.

◆ GetConnectedInputValue< T >()

T Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetConnectedInputValue< T >	(	CommandExecutionFlow	_flow,
		int	_index
	)

protected

◆ GetInput< T >() [1/2]

T Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetInput< T >	(	CommandExecutionFlow	_flow,
		int	_index
	)

protected

Get input value at in-point index. If the in-point is not connected, the the value from GetDefaultInput is retrieved. This should be called during the same frame when the Execute method is called (not asynchronously).

Template Parameters

T	The expected value type

Parameters

_flow
_index

Returns: The input value in T.

◆ GetInput< T >() [2/2]

T Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetInput< T >	(	CommandExecutionFlow	_flow,
		int	_index,
		T	_defaultValue
	)

protected

Get input value at in-point index. If the in-point is not connected, the the value from the _defaultValue is retrieved. This should be called during the same frame when the Execute method is called (not asynchronously).

Template Parameters

T	The expected value type

Parameters

_flow
_index
_defaultValue	This will also override the default value provided by the auto draw command (ICommandAutoDraw).

Returns: The input value in T

◆ GetNextOutputIndex()

virtual int Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetNextOutputIndex ( )

virtual

Get the output index to get the next command ID upon exiting this command.

Returns

Reimplemented in Calcatz.CookieCutter.BranchCommand, and Calcatz.CookieCutter.BuildableCommand.

◆ GetOutput() [1/10]

virtual T1 Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutput	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

virtual

◆ GetOutput() [2/10]

virtual OneOf< T1, T2 > Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutput	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

virtual

◆ GetOutput() [3/10]

virtual OneOf< T1, T2, T3 > Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutput	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

virtual

◆ GetOutput() [4/10]

virtual OneOf< T1, T2, T3, T4 > Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutput	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

virtual

◆ GetOutput() [5/10]

virtual OneOf< T1, T2, T3, T4, T5 > Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutput	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

virtual

◆ GetOutput() [6/10]

virtual OneOf< T1, T2, T3, T4, T5, T6 > Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutput	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

virtual

◆ GetOutput() [7/10]

virtual OneOf< T1, T2, T3, T4, T5, T6, T7 > Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutput	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

virtual

◆ GetOutput() [8/10]

virtual OneOf< T1, T2, T3, T4, T5, T6, T7, T8 > Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutput	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

virtual

◆ GetOutput() [9/10]

virtual OneOf< T1, T2, T3, T4, T5, T6, T7, T8, T9 > Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutput	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

virtual

◆ GetOutput() [10/10]

virtual OneOf< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 > Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutput	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

virtual

◆ GetOutputBoxed() [1/11]

virtual object Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutputBoxed	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

virtual

Get output value at out-point index.

Parameters

_flow
_pointIndex

Returns

◆ GetOutputBoxed() [2/11]

override sealed object Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutputBoxed	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

◆ GetOutputBoxed() [3/11]

override sealed object Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutputBoxed	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

◆ GetOutputBoxed() [4/11]

override sealed object Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutputBoxed	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

◆ GetOutputBoxed() [5/11]

override sealed object Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutputBoxed	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

◆ GetOutputBoxed() [6/11]

override sealed object Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutputBoxed	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

◆ GetOutputBoxed() [7/11]

override sealed object Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutputBoxed	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

◆ GetOutputBoxed() [8/11]

override sealed object Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutputBoxed	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

◆ GetOutputBoxed() [9/11]

override sealed object Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutputBoxed	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

◆ GetOutputBoxed() [10/11]

override sealed object Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutputBoxed	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

◆ GetOutputBoxed() [11/11]

override sealed object Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.GetOutputBoxed	(	CommandExecutionFlow	_flow,
		int	_pointIndex
	)

◆ HandleInterruption()

virtual void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.HandleInterruption ( )

protectedvirtual

Called when the current flow is force killed, while the currently executed command is exactly this command, and has not exited. Note that "exited" here means that Exit() method has been called.

Reimplemented in Calcatz.CookieCutter.PlayTimelineCommand, Calcatz.CookieCutter.WaitForCommandTrackSwitchCommand, Calcatz.CookieCutter.WaitForFramesCommand, Calcatz.CookieCutter.WaitForSecondsCommand, Calcatz.Sequine.PlayActionAnimationCommand, Calcatz.Sequine.PlayActionAnimationWithTranslationCommand, Calcatz.Sequine.PlayAnimationClipCommand, Calcatz.Sequine.SetLayerWeightCommand, Calcatz.Sequine.PlayOneShotSoundCommand, Calcatz.Sequine.WaitForInput, Calcatz.Sequine.LoadSceneAsyncCommand, Calcatz.Sequine.TextAnimationCommand, and Calcatz.Sequine.TransformTweenCommand.

◆ IsInputConnected()

bool Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.IsInputConnected ( int _index )

protected

◆ OnExit()

virtual void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.OnExit ( )

protectedvirtual

Can be optionally overriden to do something before actually exiting the command.

◆ RunSubFlow() [1/4]

void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.RunSubFlow	(	int	_outputIndex,
		bool	_invalidateImmediately = `false`
	)

protected

Run a flow, starting from the command at output index. This can only be used in a command with ICommandAutoDraw interface.

Parameters

_outputIndex
_invalidateImmediately	If true, then the sub-flow is used once and this time only, since it will get invalidated right after.

◆ RunSubFlow() [2/4]

void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.RunSubFlow	(	ref SubFlowInfo	_subFlowInfo,
		bool	_invalidateImmediately = `false`
	)

protected

Run a flow, starting from the command at output index.

Parameters

_subFlowInfo	The sub-flow info which is created by calling _flow.CreateSubFlow during the frame when Execute method is called.
_invalidateImmediately	If true, then the sub-flow is used once and this time only, since it will get invalidated right after.

◆ RunSubFlow() [3/4]

void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.RunSubFlow	(	string	_outputLabel,
		bool	_invalidateImmediately = `false`
	)

protected

Run a flow, starting from the command at output index. This can only be used in a command with ICommandAutoDraw interface.

Parameters

_outputLabel
_invalidateImmediately	If true, then the sub-flow is used once and this time only, since it will get invalidated right after.

◆ RunSubFlow() [4/4]

void Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.RunSubFlow ( SubFlowInfo _subFlowInfo )

protected

Run a flow, starting from the command at output index.

Parameters

_subFlowInfo The sub-flow info which is created by calling _flow.CreateSubFlow during the frame when Execute method is called.

◆ TryGetCommandAtOutputIndex() [1/4]

bool Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.TryGetCommandAtOutputIndex	(	CommandData	_commandData,
		int	_outputIndex,
		out Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >	_nextCommand
	)

Try get the next command at the specified main output index. The current command data of a flow may be dynamically changing, so this is the approach to specify a commmand data directly.

Parameters

_flow
_outputIndex
_nextCommand

Returns

◆ TryGetCommandAtOutputIndex() [2/4]

bool Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.TryGetCommandAtOutputIndex	(	int	_outputIndex,
		out Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >	_nextCommand
	)

protected

Try get the next command at the specified main output index. This can only be used in a command with ICommandAutoDraw interface.

Parameters

_outputIndex
_nextCommand

Returns

◆ TryGetCommandAtOutputIndex() [3/4]

bool Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.TryGetCommandAtOutputIndex	(	string	_outputLabel,
		out Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >	_nextCommand
	)

protected

Try get the next command at the specified output label. This can only be used in a command with ICommandAutoDraw interface.

Parameters

_outputLabel
_nextCommand

Returns

◆ TryGetCommandAtOutputIndex() [4/4]

bool Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.TryGetCommandAtOutputIndex	(	SubFlowInfo	_subFlowInfo,
		out Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >	_nextCommand
	)

protected

Try get the next command at the specified main output index (the command target of a sub-flow).

Parameters

_subFlowInfo
_nextCommand

Returns

◆ TryGetCommandAtOutputIndex< TCommand >()

bool Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.TryGetCommandAtOutputIndex< TCommand >	(	CommandData	_commandData,
		int	_outputIndex,
		out TCommand< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >	_nextCommand
	)

Try get the next command at the specified main output index. The current command data of a flow may be dynamically changing, so this is the approach to specify a commmand data directly.

Parameters

_flow
_outputIndex
_nextCommand

Returns

Type Constraints

TCommand

:

Command

◆ Validate()

virtual bool Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.Validate ( CommandData _commandData )

virtual

Validate() is called when opening the nodes editor (if in Edit Mode), or right before the command execution (if in Play Mode). The main purpose is to adapt or validate any data inside the Command, if its structure had been changed.

Returns: Returns true if the command is modified due to validation.

Reimplemented in Calcatz.CookieCutter.IsTimelinePlayingCommand, Calcatz.Sequine.AudioSourceControlCommand, Calcatz.Sequine.RunSubFlowCommand, Calcatz.Sequine.RunSubFlowComponentCommand, Calcatz.Sequine.SequineTargetCommand, Calcatz.Sequine.TextAnimationCommand, Calcatz.Sequine.GetTransformCommand, and Calcatz.Sequine.ModifyTransformCommand.

Member Data Documentation

◆ id

int Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.id

◆ inputIds

List<ConnectionTarget> Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.inputIds = new List<ConnectionTarget>()

◆ nextIds

List<List<ConnectionTarget> > Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.nextIds = new List<List<ConnectionTarget>>() { new List<ConnectionTarget>() { new ConnectionTarget() } }

First: Output point index. Second: Connection line index.

◆ nodePosition

Vector2 Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.nodePosition

Don't use this in non-editor code

Property Documentation

◆ nodeWidth

virtual float Calcatz.CookieCutter.Command< T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >.nodeWidth

get

The node width used for the command node.

Classes

Public Member Functions

Public Attributes

Protected Member Functions

Properties

Detailed Description

Member Function Documentation

◆ CheckTargetComponentInput< T >()

◆ Editor_InitInPoints()

◆ Editor_InitOutPoints()

◆ Editor_OnDrawContents()

◆ Editor_OnDrawTitle()

◆ Execute()

◆ Exit()

◆ GetConnectedInputValue< T >()

◆ GetInput< T >() [1/2]

◆ GetInput< T >() [2/2]

◆ GetNextOutputIndex()

◆ GetOutput() [1/10]

◆ GetOutput() [2/10]

◆ GetOutput() [3/10]

◆ GetOutput() [4/10]

◆ GetOutput() [5/10]

◆ GetOutput() [6/10]

◆ GetOutput() [7/10]

◆ GetOutput() [8/10]

◆ GetOutput() [9/10]

◆ GetOutput() [10/10]

◆ GetOutputBoxed() [1/11]

◆ GetOutputBoxed() [2/11]

◆ GetOutputBoxed() [3/11]

◆ GetOutputBoxed() [4/11]

◆ GetOutputBoxed() [5/11]

◆ GetOutputBoxed() [6/11]

◆ GetOutputBoxed() [7/11]

◆ GetOutputBoxed() [8/11]

◆ GetOutputBoxed() [9/11]

◆ GetOutputBoxed() [10/11]

◆ GetOutputBoxed() [11/11]

◆ HandleInterruption()

◆ IsInputConnected()

◆ OnExit()

◆ RunSubFlow() [1/4]

◆ RunSubFlow() [2/4]

◆ RunSubFlow() [3/4]

◆ RunSubFlow() [4/4]

◆ TryGetCommandAtOutputIndex() [1/4]

◆ TryGetCommandAtOutputIndex() [2/4]

◆ TryGetCommandAtOutputIndex() [3/4]

◆ TryGetCommandAtOutputIndex() [4/4]

◆ TryGetCommandAtOutputIndex< TCommand >()

◆ Validate()

Member Data Documentation

◆ id

◆ inputIds

◆ nextIds

◆ nodePosition

Property Documentation

◆ nodeWidth
