Calcatz.CookieCutter.CommandNode Class Reference

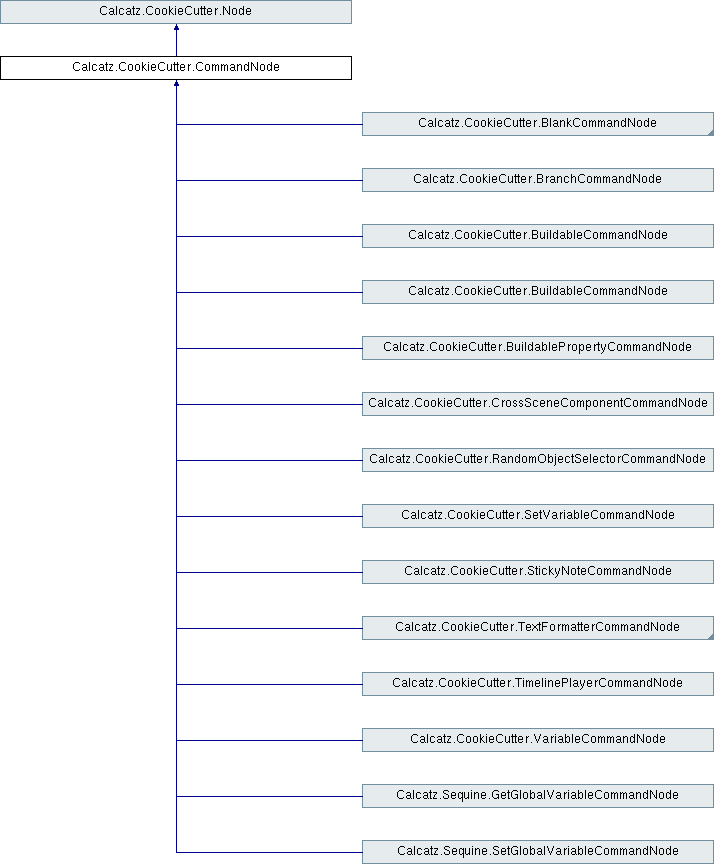

Inheritance diagram for Calcatz.CookieCutter.CommandNode:
Calcatz.CookieCutter.Node Calcatz.CookieCutter.BlankCommandNode Calcatz.CookieCutter.BranchCommandNode Calcatz.CookieCutter.BuildableCommandNode Calcatz.CookieCutter.BuildableCommandNode Calcatz.CookieCutter.BuildablePropertyCommandNode Calcatz.CookieCutter.CrossSceneComponentCommandNode Calcatz.CookieCutter.RandomObjectSelectorCommandNode Calcatz.CookieCutter.SetVariableCommandNode Calcatz.CookieCutter.StickyNoteCommandNode Calcatz.CookieCutter.TextFormatterCommandNode Calcatz.CookieCutter.TimelinePlayerCommandNode Calcatz.CookieCutter.VariableCommandNode Calcatz.Sequine.GetGlobalVariableCommandNode Calcatz.Sequine.SetGlobalVariableCommandNode

Classes

class  CommandNodeConfig

class  Styles


Public Member Functions

CommandData GetCommandData ()

Command GetCommand ()

T GetCommand< T > ()

 CommandNode (CommandData _commandData, Command _command, Vector2 _position, float _width, float _height, Config _config)

ConnectionPoint AddMainInPoint (Config _config)

ConnectionPoint AddMainOutPoint (Config _config)

ConnectionPoint AddPropertyInPoint (Type _type, Config _config)

ConnectionPoint AddPropertyInPoint< T > (Config _config)

ConnectionPoint AddPropertyOutPoint (Type _type, Config _config)

ConnectionPoint AddPropertyOutPoint< T > (Config _config)

override void Draw (Vector2 _offset)

virtual bool FilterByContent (string _filter, out string _displayContent)

- Public Member Functions inherited from Calcatz.CookieCutter.Node
 Node (Vector2 position, float width, float height, Config config)

ConnectionPoint AddInPoint (Config _config)

ConnectionPoint AddOutPoint (Config _config)

void SetConfig (Config _config)

void Drag (Vector2 delta)

bool ProcessEvents (Vector2 _offset, Event e, float _zoomScale, ref bool _anyNodeClicked)

bool ProcessSelectedNodesEvents (Vector2 _offset, Event e, NodesContainer _nodesContainer)


Static Public Member Functions

static int GetConnectionPointIndex (ConnectionPoint _point, List< ConnectionPoint > _points)

static MonoScript GetMonoScript (Type _commandType)


Public Attributes

System.Action onRefreshNeeded

string nodeName = "Command"

string tooltip = ""

- Public Attributes inherited from Calcatz.CookieCutter.Node
Rect rect

bool isDragged

bool isSelected

bool isOffScreen

bool hasOffScreenCalculated

List< ConnectionPoint > inPoints

List< ConnectionPoint > outPoints

GUIStyle style

GUIStyle defaultNodeStyle

GUIStyle selectedNodeStyle

Action< Node > OnRemoveNode


Static Public Attributes

static List< Command > clipboardCommands = new List<Command>()

- Static Public Attributes inherited from Calcatz.CookieCutter.Node
const float verticalSpacing = 5


Protected Member Functions

virtual void HandleFirstInPointCreation (Config _config)

virtual void HandleFirstOutPointCreation (Config _config)

override void DrawInPoint (Vector2 _nodePosition, int _index, float _yPos)

override void DrawOutPoint (Vector2 _nodePosition, int _index, float _yPos)

virtual void OnDrawTitle (Vector2 _absolutePosition)

virtual void OnDrawContents (Vector2 _absolutePosition)

void AddRectHeight (float _height)

void AddRectHeight (float _height, bool _autoAddVerticalSpacing)

override void OnStartDragNode (NodesContainer _nodesContainer)

override void OnDragNode (Event e, NodesContainer _nodesContainer)

override void OnEndDragNode (NodesContainer _nodesContainer)

override void HandleContextMenu (GenericMenu _genericMenu)

override bool IsCopyAvailable ()

bool IsPasteAvailable ()

override void Copy ()

override void Paste ()

override void OnClickRemoveNode ()

Rect GenerateLineRect (Vector2 _absolutePosition, int _lineCount=1)
 A wrapper to generate a standard rect for one line (or more) field. More...

void GenerateSingleLineLabeledRect (Vector2 _absolutePosition, out Rect labelRect, out Rect valueRect)

- Protected Member Functions inherited from Calcatz.CookieCutter.Node
virtual void OnRemoved ()


Static Protected Member Functions

static void DropBinderAreaGUI< T > (Rect _dropArea, System.Action< T > _onObjectChanged)


Protected Attributes

CommandData commandData

SerializedProperty serializedProperty

Command command

float currentY


Static Protected Attributes

const float LABEL_WIDTH = 0.4f

static Styles styles = new Styles()


Properties

virtual string[] ReservedNodeNames [get]

virtual bool[] ReservedNodeTypes [get]


Constructor & Destructor Documentation

◆ CommandNode()

Calcatz.CookieCutter.CommandNode.CommandNode ( CommandData  _commandData,
Command  _command,
Vector2  _position,
float  _width,
float  _height,
Config  _config
)

Member Function Documentation

◆ AddMainInPoint()

ConnectionPoint Calcatz.CookieCutter.CommandNode.AddMainInPoint ( Config  _config)

◆ AddMainOutPoint()

ConnectionPoint Calcatz.CookieCutter.CommandNode.AddMainOutPoint ( Config  _config)

◆ AddPropertyInPoint()

ConnectionPoint Calcatz.CookieCutter.CommandNode.AddPropertyInPoint ( Type  _type,
Config  _config
)

◆ AddPropertyInPoint< T >()

ConnectionPoint Calcatz.CookieCutter.CommandNode.AddPropertyInPoint< T > ( Config  _config)

◆ AddPropertyOutPoint()

ConnectionPoint Calcatz.CookieCutter.CommandNode.AddPropertyOutPoint ( Type  _type,
Config  _config
)

◆ AddPropertyOutPoint< T >()

ConnectionPoint Calcatz.CookieCutter.CommandNode.AddPropertyOutPoint< T > ( Config  _config)

◆ AddRectHeight() [1/2]

void Calcatz.CookieCutter.CommandNode.AddRectHeight ( float  _height)
protected

◆ AddRectHeight() [2/2]

void Calcatz.CookieCutter.CommandNode.AddRectHeight ( float  _height,
bool  _autoAddVerticalSpacing
)
protected

◆ Copy()

override void Calcatz.CookieCutter.CommandNode.Copy ( )
protectedvirtual

Reimplemented from Calcatz.CookieCutter.Node.

◆ Draw()

override void Calcatz.CookieCutter.CommandNode.Draw ( Vector2  _offset)
virtual

Reimplemented from Calcatz.CookieCutter.Node.

Reimplemented in Calcatz.CookieCutter.SetVariableCommandNode, Calcatz.CookieCutter.StickyNoteCommandNode, and Calcatz.Sequine.SetGlobalVariableCommandNode.

◆ DrawInPoint()

override void Calcatz.CookieCutter.CommandNode.DrawInPoint ( Vector2  _nodePosition,
int  _index,
float  _yPos
)
protectedvirtual

Reimplemented from Calcatz.CookieCutter.Node.

◆ DrawOutPoint()

override void Calcatz.CookieCutter.CommandNode.DrawOutPoint ( Vector2  _nodePosition,
int  _index,
float  _yPos
)
protectedvirtual

Reimplemented from Calcatz.CookieCutter.Node.

◆ DropBinderAreaGUI< T >()

static void Calcatz.CookieCutter.CommandNode.DropBinderAreaGUI< T > ( Rect  _dropArea,
System.Action< T >  _onObjectChanged
)
staticprotected

◆ FilterByContent()

virtual bool Calcatz.CookieCutter.CommandNode.FilterByContent ( string  _filter,
out string  _displayContent
)
virtual

Reimplemented in Calcatz.CookieCutter.BranchCommandNode, and Calcatz.CookieCutter.TextFormatterCommandNode.

◆ GenerateLineRect()

Rect Calcatz.CookieCutter.CommandNode.GenerateLineRect ( Vector2  _absolutePosition,
int  _lineCount = 1
)
protected

A wrapper to generate a standard rect for one line (or more) field.

Parameters
_absolutePosition
_lineCount
Returns

◆ GenerateSingleLineLabeledRect()

void Calcatz.CookieCutter.CommandNode.GenerateSingleLineLabeledRect ( Vector2  _absolutePosition,
out Rect  labelRect,
out Rect  valueRect
)
protected

◆ GetCommand()

Command Calcatz.CookieCutter.CommandNode.GetCommand ( )

◆ GetCommand< T >()

T Calcatz.CookieCutter.CommandNode.GetCommand< T > ( )
Type Constraints
T :Command

◆ GetCommandData()

CommandData Calcatz.CookieCutter.CommandNode.GetCommandData ( )

◆ GetConnectionPointIndex()

static int Calcatz.CookieCutter.CommandNode.GetConnectionPointIndex ( ConnectionPoint  _point,
List< ConnectionPoint >  _points
)
static

◆ GetMonoScript()

static MonoScript Calcatz.CookieCutter.CommandNode.GetMonoScript ( Type  _commandType)
static

◆ HandleContextMenu()

override void Calcatz.CookieCutter.CommandNode.HandleContextMenu ( GenericMenu  _genericMenu)
protectedvirtual

Reimplemented from Calcatz.CookieCutter.Node.

◆ HandleFirstInPointCreation()

virtual void Calcatz.CookieCutter.CommandNode.HandleFirstInPointCreation ( Config  _config)
protectedvirtual

Reimplemented in Calcatz.CookieCutter.BuildableCommandNode, Calcatz.CookieCutter.BuildablePropertyCommandNode, Calcatz.CookieCutter.TextFormatterCommandNode, Calcatz.CookieCutter.CrossSceneComponentCommandNode, Calcatz.CookieCutter.RandomObjectSelectorCommandNode, Calcatz.CookieCutter.StringFormatterCommandNode, Calcatz.CookieCutter.VariableCommandNode, and Calcatz.Sequine.GetGlobalVariableCommandNode.

◆ HandleFirstOutPointCreation()

virtual void Calcatz.CookieCutter.CommandNode.HandleFirstOutPointCreation ( Config  _config)
protectedvirtual

Reimplemented in Calcatz.CookieCutter.BuildableCommandNode, Calcatz.CookieCutter.BuildablePropertyCommandNode, Calcatz.CookieCutter.CrossSceneComponentCommandNode, Calcatz.CookieCutter.RandomObjectSelectorCommandNode, Calcatz.CookieCutter.StringFormatterCommandNode, Calcatz.CookieCutter.VariableCommandNode, and Calcatz.Sequine.GetGlobalVariableCommandNode.

◆ IsCopyAvailable()

override bool Calcatz.CookieCutter.CommandNode.IsCopyAvailable ( )
protectedvirtual

Reimplemented from Calcatz.CookieCutter.Node.

◆ IsPasteAvailable()

bool Calcatz.CookieCutter.CommandNode.IsPasteAvailable ( )
protected

◆ OnClickRemoveNode()

override void Calcatz.CookieCutter.CommandNode.OnClickRemoveNode ( )
protectedvirtual

Reimplemented from Calcatz.CookieCutter.Node.

◆ OnDragNode()

override void Calcatz.CookieCutter.CommandNode.OnDragNode ( Event  e,
NodesContainer  _nodesContainer
)
protectedvirtual

Reimplemented from Calcatz.CookieCutter.Node.

◆ OnDrawContents()

virtual void Calcatz.CookieCutter.CommandNode.OnDrawContents ( Vector2  _absolutePosition)
protectedvirtual

Reimplemented in Calcatz.CookieCutter.BranchCommandNode, Calcatz.CookieCutter.BuildableCommandNode, Calcatz.CookieCutter.BuildablePropertyCommandNode, Calcatz.CookieCutter.TextFormatterCommandNode, Calcatz.CookieCutter.TimelinePlayerCommandNode, Calcatz.CookieCutter.CrossSceneComponentCommandNode, Calcatz.CookieCutter.RandomObjectSelectorCommandNode, Calcatz.Sequine.GetGlobalVariableCommandNode, and Calcatz.Sequine.SequineFlowCommandNode.

◆ OnDrawTitle()

virtual void Calcatz.CookieCutter.CommandNode.OnDrawTitle ( Vector2  _absolutePosition)
protectedvirtual

Reimplemented in Calcatz.CookieCutter.BuildableCommandNode, Calcatz.CookieCutter.CrossSceneComponentCommandNode, Calcatz.CookieCutter.StringFormatterCommandNode, Calcatz.Sequine.SequineFlowCommandNode, Calcatz.CookieCutter.BranchCommandNode, and Calcatz.CookieCutter.BuildablePropertyCommandNode.

◆ OnEndDragNode()

override void Calcatz.CookieCutter.CommandNode.OnEndDragNode ( NodesContainer  _nodesContainer)
protectedvirtual

Reimplemented from Calcatz.CookieCutter.Node.

◆ OnStartDragNode()

override void Calcatz.CookieCutter.CommandNode.OnStartDragNode ( NodesContainer  _nodesContainer)
protectedvirtual

Reimplemented from Calcatz.CookieCutter.Node.

◆ Paste()

override void Calcatz.CookieCutter.CommandNode.Paste ( )
protectedvirtual

Reimplemented from Calcatz.CookieCutter.Node.

Member Data Documentation

◆ clipboardCommands

List<Command> Calcatz.CookieCutter.CommandNode.clipboardCommands = new List<Command>()
static

◆ command

Command Calcatz.CookieCutter.CommandNode.command
protected

◆ commandData

CommandData Calcatz.CookieCutter.CommandNode.commandData
protected

◆ currentY

float Calcatz.CookieCutter.CommandNode.currentY
protected

◆ LABEL_WIDTH

const float Calcatz.CookieCutter.CommandNode.LABEL_WIDTH = 0.4f
staticprotected

◆ nodeName

string Calcatz.CookieCutter.CommandNode.nodeName = "Command"

◆ onRefreshNeeded

System.Action Calcatz.CookieCutter.CommandNode.onRefreshNeeded

◆ serializedProperty

SerializedProperty Calcatz.CookieCutter.CommandNode.serializedProperty
protected

◆ styles

Styles Calcatz.CookieCutter.CommandNode.styles = new Styles()
staticprotected

◆ tooltip

string Calcatz.CookieCutter.CommandNode.tooltip = ""

Property Documentation

◆ ReservedNodeNames

virtual string [] Calcatz.CookieCutter.CommandNode.ReservedNodeNames
get

◆ ReservedNodeTypes

virtual bool [] Calcatz.CookieCutter.CommandNode.ReservedNodeTypes
get
